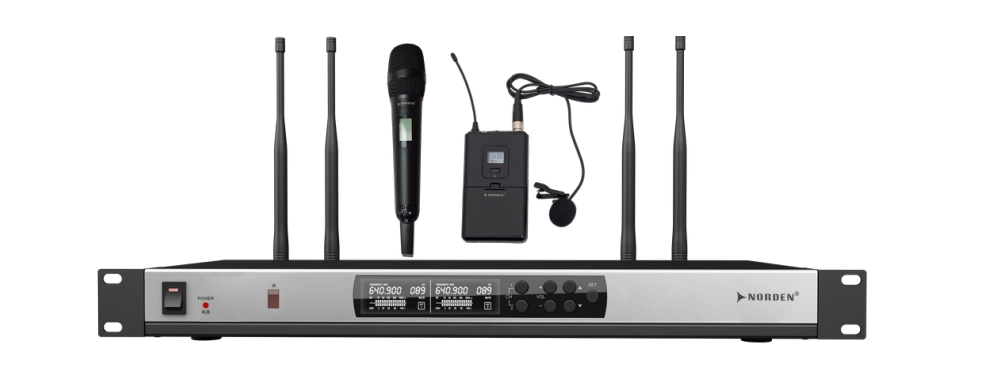

WIRELESS MICROPHONE SET
NVS-30060001MP
The NVS-30060001MP is a professional wireless microphone system featuring one handheld microphone and one clip-type microphone, providing flexibility for various applications. It adopts infrared matching technology for fast, stable frequency synchronization and ensures reliable performance. The system is equipped with dual output interfaces, enabling seamless connection and remote monitoring, making it ideal for conferences, presentations, stage events, and professional audio setups. It Adopts UHF 200 channel with PLL digital lock automatic communication function.
Product Overview
The NVS-30060001MP is a professional wireless microphone system featuring one handheld microphone and one clip-type microphone, providing flexibility for various applications. It adopts infrared matching technology for fast, stable frequency synchronization and ensures reliable performance. The system is equipped with dual output interfaces, enabling seamless connection and remote monitoring, making it ideal for conferences, presentations, stage events, and professional audio setups. It Adopts UHF 200 channel with PLL digital lock automatic communication function.
FEATURES
- Dual-channel PLL for stable transmission
- Quick IR frequency pairing
- Independent channel volume control
- LCD with frequency, channel, squelch, level
- AF output, range up to 300m
| SPECIFICATIONS | |||||||||
Model | NVS-30060001MP | ||||||||
| Working Frequency | 632 – 661.25MHz | ||||||||
| Modulation Type | FM | ||||||||
| Number of Channels | 100 | ||||||||
| Channel Spacing | 250kHz | ||||||||
| Dynamic Range | 82dB | ||||||||
| Maximum Deviation | ±45kHz | ||||||||
| Frequency Response | 120Hz~15KHz (±3dB) | ||||||||
| Signal to Noise Ratio | >70dB | ||||||||
| Polar Pattern | Unidirectional | ||||||||
| Composite Distortion | ≤1% | ||||||||
| Working Temperature | -10°C ~ +40°C | ||||||||
| Package Dimension | 530×335×220mm | ||||||||
| Gross Weight | 5Kg | ||||||||
| Wireless connector: BNC/50Ω | |||||||||
| Sensitivity: ≤-95dBm | |||||||||
| Receiver | Operating Power: DC12V, 600mA | ||||||||
| Weight: 2.3kg | |||||||||
| Dimension: 430×176×44mm | |||||||||
| Part Number | Description | Standard Quantity | ||
| NVS-30060001MP | WIRELESS MICROPHONE SET(1 HAND-HELD & 1 CLIP-TYPE) | 01 | ||
ACCESSORIES INFORMATION
| Description | Standard Quantity |
| Power Adapter | 01 |
| Battery | 04 |
| Audio Cable | 01 |
| Antenna | 04 |
| Handle | 02 |
| User Manual | 01 |
