WATERPROOF DYNAMIC FACIAL RECOGNITION ACCESS CONTROLLER
NAC-4010DF
The NAC-4001FFV2 is a Dynamic Facial Fingerprint Access Controller equipped with 256M DDR3L and a 4.3 inch IPS capacitive touch screen. It comes with high definition Wide dynamic Range camera with 99.7% facial recognition accuracy under different lighting conditions.
Product Overview
The NAC-4001FFV2 is a Dynamic Facial Fingerprint Access Controller equipped with 256M DDR3L and a 4.3 inch IPS capacitive touch screen. It comes with high definition Wide dynamic Range camera with 99.7% facial recognition accuracy under different lighting conditions.
APPLICATION
It can be used in Office, Schools, Factories etc.
FEATURES
- Equipped with a 4.3 inch touch screen display
- Backed with 99.7% facial recognition accuracy
- Featuring live Infrared camera
- Has multi-language capabilities TECHNICAL PARAMETER
TECHNICAL PARAMETERS | ||
Model | NAC-4010DF | |
| Screen | 5.0 inch , HD 720*1280 , Captive Touch Screen | |
| Keypad | Touch Keypad | |
| Operating System | Linux 3.10 | |
| CPU,NPU | 1.2G Dual-Core ARM Cortex-A7,600G(0.6T) | |
| RAM | 1GB DDR3 | |
| ROM | eMMC Flash 8GB | |
| Binocular camera | 200W Colorful WDR+200W infrared live Camera | |
| Logs capacity | 5,00,000 | |
| Face Registration | Local operation: Enroll face with machine, import user photo with U disk | |
| Software operation: Import user photo to soware, capture user photo with camera | ||
| Verification | Dynamic face recognition, password, ID/IC card optional | |
| Face capacity | 50,000 | |
| Card Capacity | 50,000, ID Card Standard, IC Card Optional | |
| Password Capacity | 50,000 | |
| Face Recognition Accuracy | 99.70% | |
| Recognition Speed | <0.2 s, support single and multi user (atmost 5 users) recognition simultaneously | |
| Recognition Distance | 0.5-2.5 meters (0.5-1.5 meters with live face recognition on) | |
| Prevent Photo | Dual camera anti-counterfeiting , prevent recognition with photo/video | |
| WDR | Wide dynamic range, support accurate face recognition under strong light, dark light and backlight | |
| USB | USB 2.0 x 1 , Support U disk import/export data | |
| Speaker Interface | Reserved for extended speaker interface | |
| Network Communication | TCP/IP Support C/S LAN communication, Wifi (optional) | |
| Free attendance software | Support exporting excel attendance report with U disk | |
| Management software | Support PC soware to manage data through network connection with equipment | |
| Access Control Function | Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, one set of alarm signals, | |
| time permission control, connect external access control reader, Wiegand 25/34 output input | ||
| Working Temperature | -15°C ~ +45°C | |
| Storage Temperature | -40°C ~ +65°C | |
| Working Humidity | 20% ~ 90% | |
| Storage Humidity | 20% ~ 90±2% | |
| Ambient Light Adaptation Range | 0-50000Lux | |
| Multi language | English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc. | |
| Broadcase and ring | Support display name, voice broadcast name, built-in bell ring | |
| Automatic fill light | Support infrared fill light, the white fill light automatically lights up when face is captured in dark light | |
| Working Current | 520mA | |
| Standby Current | 310mA | |
| QR Code Scanner | Support | |
| Installation Way | Standard Wall mount, desktop stand, Optional bracket for turnstile, floor stand | |
| Power Supply | DC 12V, 2A | |

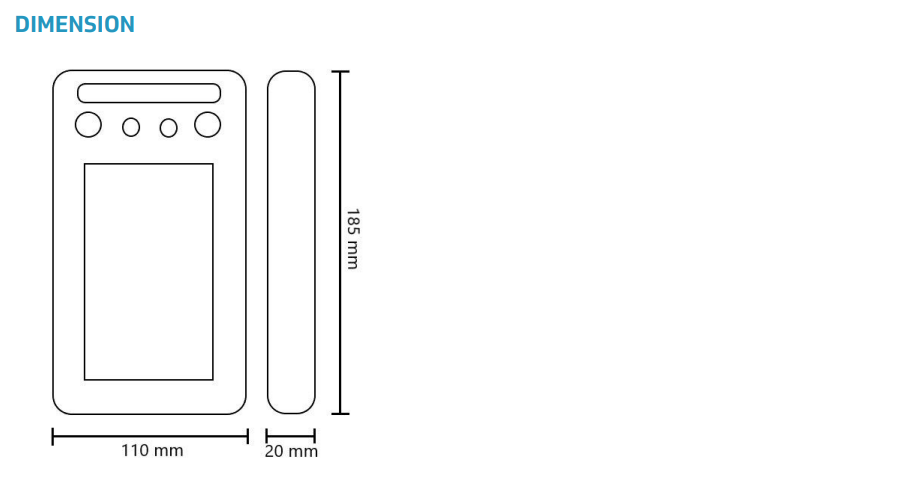

| Product Dimension | 185 x 110 x 20 mm | |
| Part Number | Description |
| NAC-4010DF | Waterproof Dynamic Facial Recognition Access Controller |
| NAC-4010DFMF | Waterproof Dynamic Facial Recognition Access Controller (Mifare) |
