PROFESSIONAL STEREO POWER AMPLIFIER 2X700W
NVS-20161402AM
The NVS-20161402AM is a two-channel stereo amplifier with low distortion and high efficiency. Equipped with reliable protection of overvoltage, under-voltage, DC protection, short circuit and alarming function conference. BTL connectivity is offered. It is appropriate for conference systems, meeting rooms, and daily activities.
Product Overview
The NVS-20161402AM is a two-channel stereo amplifier with low distortion and high efficiency. Equipped with reliable protection of overvoltage, under-voltage, DC protection, short circuit and alarming function conference. BTL connectivity is offered. It is appropriate for conference systems, meeting rooms, and daily activities.
FEATURES
- Low Distortion
- Stereo Operation
- BTL Connectivity
| SPECIFICATIONS | ||
Model | NVS-20161402AM | |
| Rated output / channel, 8Ω | 400W | |
| Rated output / channel, 4Ω | 700W | |
| Rated output / BTL, 8Ω | 1400W | |
| Frequency Response | 20Hz – 20kHz | |
| Input sensitivity | 1.2dBV | |
| Total Harmonic Distortion | <0.1% into 4Ω/1kHz | |
| Signal to Noise Ratio | 100dB | |
| Damping Factor | 200:1/8Ω, 1kHz | |
| Input CMRR | >90dB | |
| Channel Impedance | 4-16Ω | |
| Voltage Gain | >38dB | |
| Weight | 23.5Kg | |
| Dimension | 484×446×88mm | |

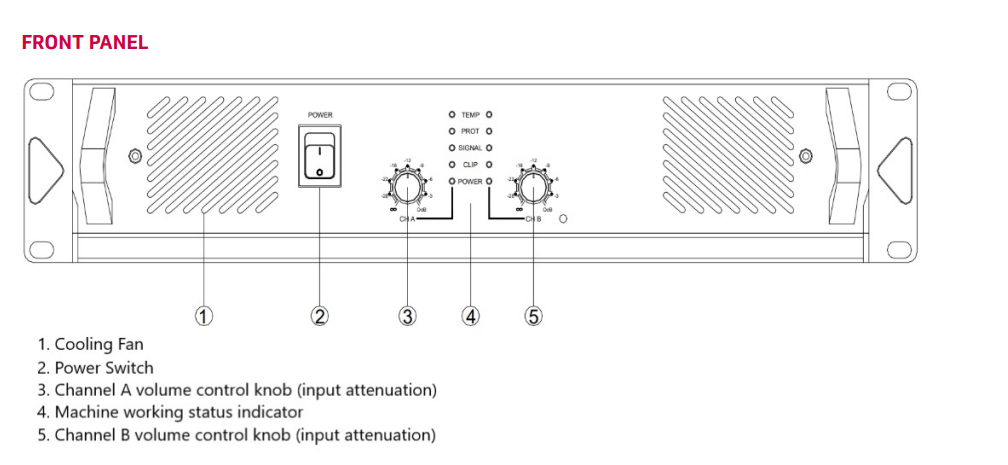

FRONT PANEL

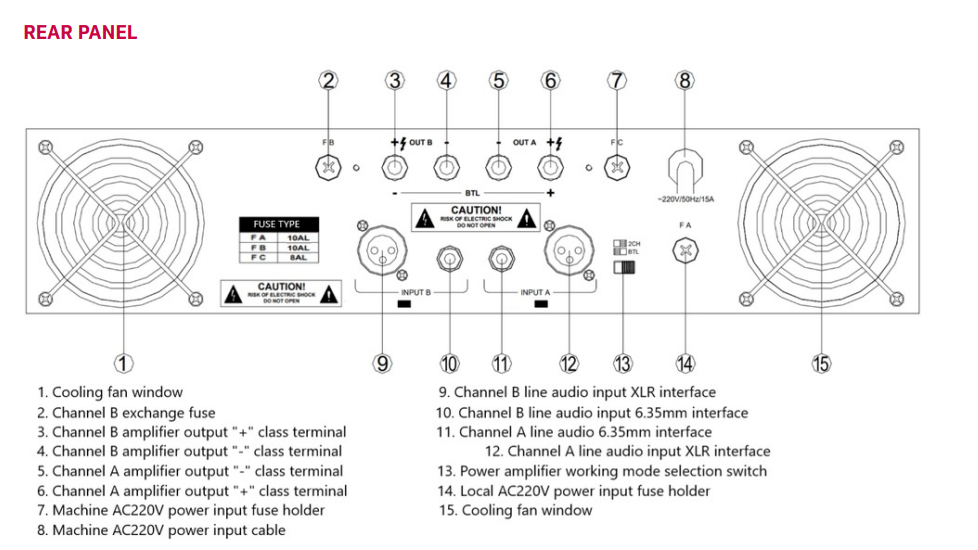

REAR PANEL
| Part Number | Description | Standard Quantity | ||
| NVS-20161402AM | PROFESSIONAL STEREO POWER AMPLIFIER 2x700W | 01 | ||
| Description | Standard Quantity | ||
| User Manual | 01 | ||
