OFF GRID

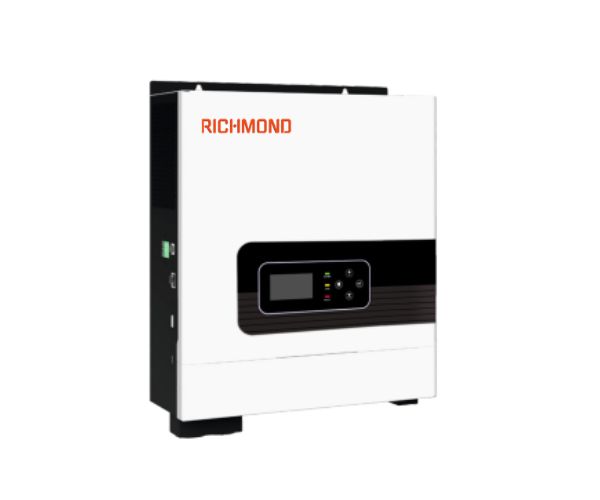

This all-in-one inverter/charger combines multiple functions, including an inverter, a 40A/60A MPPT solar charger, and a battery charger, to ensure continuous power supply in a compact design. The LCD display is user-friendly, allowing for straightforward configuration of settings such as battery charging current, priority between AC and solar charging, and input voltage, making it suitable for a range of different uses.
Product Overview
This all-in-one inverter/charger combines multiple functions, including an inverter, a 40A/60A MPPT solar charger, and a battery charger, to ensure continuous power supply in a compact design. The LCD display is user-friendly, allowing for straightforward configuration of settings such as battery charging current, priority between AC and solar charging, and input voltage, making it suitable for a range of different uses.
GENERAL FEATURES
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Smart battery pack BMS communication function (CAN Port)
- Cold start function
- Compatible to generator
- Bult in MPPT 40A/60A solar charge controller
- PV/ AC activation function
- Support USB, RS485, CAN monitoring function
- WIFI remote monitoring (optional)
SPECIFICATION
| Model | NPS-0112IO | NPS-1512IO | NPS-1224IO | NPS-2224IO | |
Inverter Output | Nominal battery system voltage | 12VDC | 12VDC | 24VDC | 24VDC |
| Rated power (kVA/W) | 1000VA/1000W | 1500VA/1500W | 1200VA/1200W | 2200VA/2200W | |
| Waveform | Pure Sine-wave | ||||
| Nominal output voltage RMS | 230VAC | ||||
| Inverter efficiency (Peak) | 90% ~ 95% | ||||
| Typical transfer time | 10ms(UPS / VDE4105) / 20ms(APL) | ||||
AC Input | Voltage | 230VACb | |||
| Selectable voltage range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | ||||
| Frequency range | 50Hz/60Hz (Auto sensing) | ||||
| Battery | Normal voltage | 12VDC | 24VDC | ||
| Floating Charge Voltage | 13.8VDC | 27.4VDC | |||
| Overcharge Protection | 15VDC | 30VDC | |||
| Solar Charger & AC Charger | Maximum PV Array Open Circuit Voltage | 105VDC | 145VDC | 120VDC | 160VDC |
| Maximum PV Array Power | 600W | 720W | 1000W | 1600W | |
| MPPT Operating Voltage Range | 15 ~ 75VDC | 15 ~ 130VDC | 30 ~ 96VDC | 30 ~ 128VDC | |
| Maximum Solar Charge Current | 45A | 60A | 40A | 60A | |
| Maximum Efficiency | 98% | ||||
Mechanical Specifications | Net Weight (kg) | 3.6 | 5.5 | 4.7 | 5.5 |
| Machine Dimensions (W*H*D) | 224 x 337 x 98mm | 255 x 318 x 110mm | 224 x 337 x 98mm | 367.4 x 254.5 x 103mm | |
Other | Operation Temperature Range | 0°C~50°C | |||
| Storage temperature | -15°C ~ 60°C | ||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Display | LCD | ||||
| Certifications & Standards | CE-EMC+LVD(EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) | ||||
| Part Number | Description | ||
| NPS-0112IO | 1kVA Off Grid Solar Inverter | ||
| NPS-1512IO | 1.5kVA Off Grid Solar Inverter | ||
| NPS-1224IO | 1.2kVA Off Grid Solar Inverter | ||
| NPS-2224IO | 2.2kVA Off Grid Solar Inverter | ||
