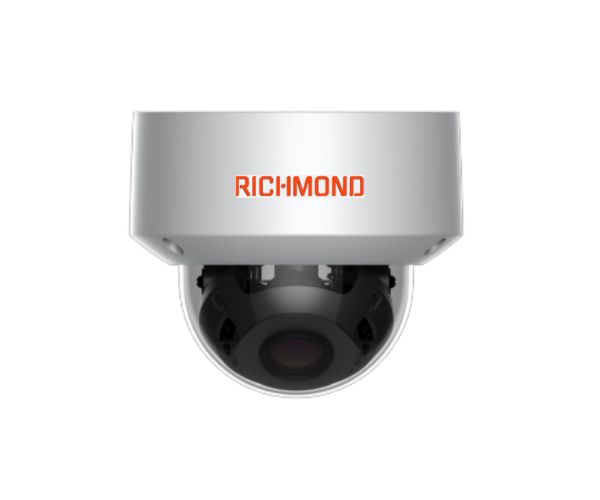

Motorized Vandal Dome Camera
ENC-HVD5M-50R-94
Product Overview
MODEL | Model No | ENC-HVD5M-50R-94 |
Type | 2MP MOTORIZED VANDAL DOME CAMERA | |
CAMERA | Image Sensor | 1/2.8″ CMOS Progressive 2.0 MegaPixel |
| Day/Night | Dual IR Cut Filter with Auto Switch | |
Lens Type | Motorized | |
Focal Length | 2.7~13.5 mm | |
| Focus | Auto / Manual | |
| Iris Type | DC Auto Iris | |
| Lens Mount | Φ14 | |
| Angle of View (H) | 102.8° ~ 31.3° | |
| Angle of View (V) | 57.3°~17.6° | |
| Angle of View (D) | 116.7° ~ 36.1° | |
| Angle Adjustment | Pan 0~330°, Tilt 0~75°, Rotate 0~350° | |
| Aperture | F1.6 ~ F3.3 | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto / Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.6, B/W: 0 lux with IR | |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | ≥60 dB | |
| Defog | Smart Defog | |
| WDR | 120 dB | |
| Smart IR | Up to 50 m | |
| IR LEDs | 18 | |
| Wavelength | 850 nm | |
DORI | Lens | 2.7 ~ 13.5 mm |
Detection | 38.5 ~ 165.5m | |
| Observation | 15.0 ~ 65.5 m | |
| Recognition | 7.5 ~ 33.0 m | |
| Identification | 3.5 ~ 16.5 m | |
VIDEO | Max. Resolution | 1920×1080 |
| Video Compression | Enhanced (H.265, H.264), H.265, H.264, MJPEG | |
Frame Rate | Main Stream: (1920×1080, 1280×720, 704×480, 640×480) @ 30fps, (1920×1080, 1280×720, 704×576, 640×480) @ 25fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps Third Stream: (704×480, 704×240, 352×240) @ 30fps, (704×576, 704×288, 352×288) @ 25fps | |
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate (1~30FPS), SVC | |
| EIS | Supported | |
| Video Bit Rate | 32 kbps ~ 8 Mbps | |
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night | |
| White Balance | Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual | |
| Corridor Mode | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| OSD | Up to 5 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 32×32, 48×48, 64×64), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 4 regions | |
| Heatmap | Supported | |
AUDIO | Audio Compression | G.711A, G.711U, ADPCM_D, AAC_LC |
Audio Bit Rate | 8 kbps, 32kbps, 48 kbps | |
| Audio I/O | 1/1 | |
| Audio Voltage | Input: Level 5V, Input Impedance 1500 ohms Output: Level 3V, Output Impedance 100 ohms | |
| Built-in Mic | Supported with noise cancellation | |
SMART | Behaviour Detection | Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Loitering, Running, Abandoned Object (Object Left), Missing Object (Object Lost), Parking | |
Statistical Analysis | Face Detection (Capture), People Counting, Crowd Detection, On Duty Detection, Helmet Detection, Human & Vehicle Classification, Abnormal Video & Audio Detection | |
Alarm Management | Motion Detection, Tampering (Masking), Input & Output Event, IP & MAC Address Conflict, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot | |
| Alarm Notification | E-mail (Notification and Snapshot), HTTP (Alarm Icon ), FTP (Snapshot and Recording), SD Card (Recording) | |
INTERFACE | Protocols | TCP/IP, UDP, IPv4 ,IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP, PPPoE, NTP, NFS, UPnP, SMTP, SSL, TLS 1.2 , IGMP, 802.1X, QoS, Unicast, Multicast, ARP, SNMP, SFTP, P2P |
Security | AES 128 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF Profile (S, G, T, M), SDK/API/CGI | |
| Network | 1 x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Wi-Fi | N/A | |
| Alarm I/O | 2/1 | |
| Alarm Voltage | Input (switch type) , Output (3.3V-12V, 10 ohm) | |
| Serial Interface | 1xRS485 | |
| USB | N/A | |
| Edge Storage | MicroSD card slot, up to 512 GB | |
| ANR | Supported | |
| Built-in Speaker | N/A | |
| Built-in Heater | N/A | |
| Cable Interface | Pig Tail | |
| Remote Connection | ≤7 | |
| Web Language | 15 | |
| Client Application | EyeConnect | |
GENERAL | Power Supply | 12V DC, PoE (IEEE 802.3af) |
| Max. Power Consumption | ≤7 W (12V DC), ≤9 W (PoE) | |
Working Temperature | -40 °C ~ 65 °C | |
Working Humidity | ≤95% RH (non-condensing) | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 | |
| Extra corrosion resistance coating | Supported (Optional) | |
| Surge Protection | TVS4000V | |
| Reset Button | Supported | |

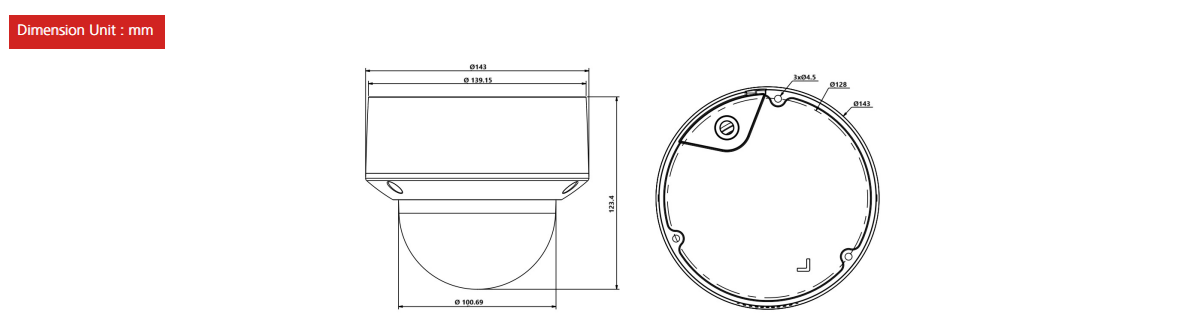

| Dimensions | Φ143×123.4 mm | |
| Net Weight | 0.88 Kg |
| Part Number | Description | Standard Quantity |
| ENC-HVD5M-50R-94 | 2MP Starlight IR IP Vandal Proof Dome Camera with 2.7-13.5mm Motorized Lens, PoE, WDR, SD card slot, Built-in Mic , Smart Analytics and 50m IR Support | 1 |
| ENB-BTDW65 | Wall Mount Bracket for Richmond Dome Camera (Plastic) | 1 |
| ENB-BTEJ65 | Junction Box for Richmond Motorized Turret Camera | 1 |
