LOWLIGHT BULLET CAMERA
ENC-HBU5M-60R-70
Product Overview
MODEL | Model No. | ENC-HBU5M-60R-70 |
Type | 2MP 60FPS LOWLIGHT BULLET CAMERA | |
CAMERA | Image Sensor | 1/2.8″ CMOS Progressive 2.0 MegaPixel |
| Day / Night | IR Cut Filter with Auto Switch | |
Lens Type | Fixed | |
Focal Length | 2.7 ~ 13.5 mm Lens | |
| Digital Zoom | 16x | |
| Focus | Auto / Manual | |
| Iris Type | Fixed Auto Iris | |
| Angle of View (H) | 101.0° ~ 28.0° | |
| Angle of View (V) | 54.0° ~ 16.0° | |
| Angle of View (D) | 114.5° ~32.2° | |
| Angle Adjustment | Bracket; Pan 0~360°, Tilt 0~90°, Rotate 0~360° | |
| Aperture | F1.6 | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto / Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.6, B/W: 0 lux with IR | |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 2D & 3D DNR, Auto / Manual | |
| S/N Ratio | ≥55 dB | |
| Defog | Smart Defog | |
| WDR | 120 dB | |
| Smart IR | Up to 60 m | |
| Wavelength | 850 nm | |
DORI | Lens | 2.7 ~ 13.5 mm |
Detection | 48.0 ~ 152.0 m | |
| Observation | 19.2 ~ 60.8 m | |
| Recognition | 9.6 ~ 30.4 m | |
| Identification | 4.8 ~ 15.2 m | |
VIDEO | Max. Resolution | 1920×1080 |
| Video Compression | Enhanced (H.265,H.264), H.265, H.264, MJPEG | |
Frame Rate | Main Stream: (1920×1080, 1280×720, 704×576) @ 50/60fps Sub Stream: (1920×1080, 1280×720, 704×576) @ 25/30fps Third Stream: (640×480, 352×288, 320×240) @ 25/30fps Fourth Stream: (640×480, 352×288, 320×240) @ 25/30fps (Optional) | |
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| EIS | Supported | |
| Video Bit Rate | 100 kbps ~ 12 Mbps | |
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Day/Night (Color, Mono, Auto), Flip/Mirror/Rotation, Multiple Scene & Profile | |
| White Balance | Auto, Day/Night, Tungsten, Fluorescent, Shadow, Manual | |
| Corridor Mode | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| OSD | Up to 8 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes, Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 4 regions | |
AUDIO | Audio Compression | G.711 U, G.711A, , RAW_PCM |
Audio Bit Rate | 64 kbps, 128 kbps | |
| Audio I/O | 1/1 | |
SMART | Behavior Detection | Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Loitering, Multi Loitering, Abandoned Object (Object Left), Missing Object (Object Lost) | |
Statistical Analysis | Face Detection , People Counting, Human & Vehicle Detection, Abnormal Video & Audio Detection, Wrong Way Detection, Illegal Parking, Tampering / Masking / Scene Change, Abnormal Speed | |
Alarm Management | Motion Detection, Tampering (Masking), Input & Output Event, Network Alarm, Disk Alarm, Day Night Switch Alarm, Abnormal Audio Alarm, Pre/Post Alarm Recording, Alarm Recording/Snapshot | |
| Alarm Notifications | E-mail (Notification & Snapshot), HTTP (Alarm icon), FTP (Snapshot & Recording ), SD Card (Recording) | |
INTERFACE | Protocols | TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP , IGMP, 802.1X, Unicast, Multicast, QoS, ARP, SNMP, SSL/TLS1.2 |
Security | AES 128/256 Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, RTSP Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF Profile (S, G, T, M), SDK / CGI | |
| Network | 1 x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Alarm I/O | 1/1 | |
| Edge Storage | Micro SD Card Slot, up to 512 GB | |
| ANR | Supported | |
| Max. User | 32 | |
| Client Application | EyeGuard | |
GENERAL | Power Supply | 12V DC , PoE (IEEE 802.3af) |
| Max. Power Consumption | ≤10.5 W | |
Working Temperature | -40 °C ~ 65 °C | |
Working Humidity | ≤95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | TVS4000V | |
| Reset Button | Supported | |

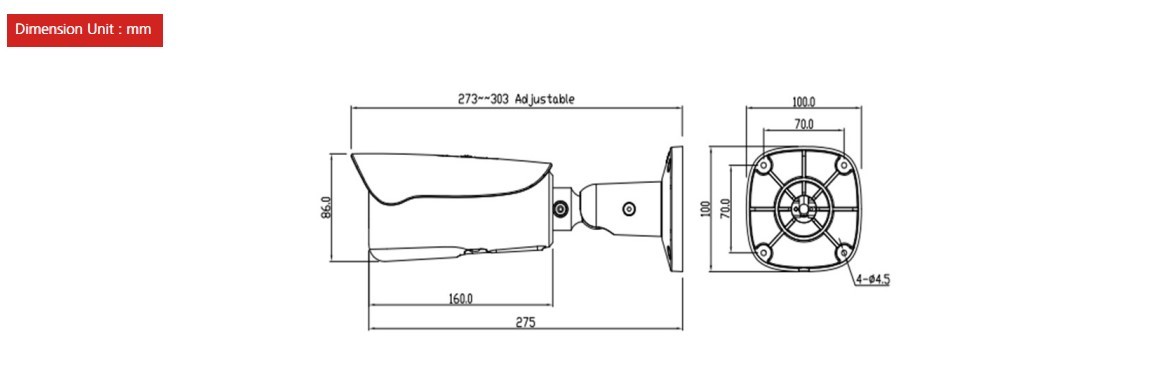

| Dimensions | Adjustable (273~303)x100x100 mm | |
| Net Weight | 0.81 kg |
| Part Number | Description | Standard Quantity |
| ENC-HBU5M-60R-70 | 2MP 60FPS Lowlight IR IP H.265 Bullet camera with 2.7 to 13.5mm Motorized Lens, PoE, SD card slot, WDR, Smart Analytics and 60M IR support | 1 |
| ENB-BCUJ66 | Junction Box for Richmond Bullet Camera | 1 |
| ENB-BCUV67 | Pole Mount Bracket for Richmond Bullet Camera | 1 |
