INTELLIGENT ADDRESSABLE FIRE ALARM CONTROL PANEL
NFA-T01LC

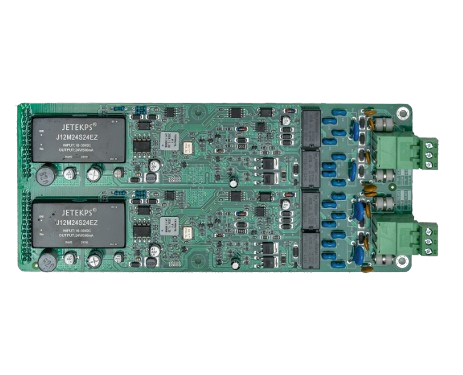

The NFA-T01LC is a dual-loop expansion card designed to increase the loop capacity of a control panel. Each loop supports up to 254 addressable NFA-compatible devices, including optical smoke detectors, heat detectors, call points, modules, and sounders, in any combination. The transmission path is fully monitored, ensuring that any short or open circuit faults are detected and reported individually for each loop. The card also features built-in DC surge protection, capable of withstanding up to 4kA lightning current. Designed for panel mounting, the NFA-T01LC can be installed in any available loop port, with the control panel automatically assigning the loop number upon power-up.
Product Overview
The NFA-T01LC is a dual-loop expansion card designed to increase the loop capacity of a control panel. Each loop supports up to 254 addressable NFA-compatible devices, including optical smoke detectors, heat detectors, call points, modules, and sounders, in any combination. The transmission path is fully monitored, ensuring that any short or open circuit faults are detected and reported individually for each loop. The card also features built-in DC surge protection, capable of withstanding up to 4kA lightning current. Designed for panel mounting, the NFA-T01LC can be installed in any available loop port, with the control panel automatically assigning the loop number upon power-up.
FEATURES & BENEFITS
- Dual loop card that supports up to 508 addressable devices.
- Optional Card to be added on the panel as required
- Compatible with NFA-T04 series control panel
- Built-In DC Surge protection
- Transmission path is fully monitored
- No Card positioning and addressing required
- Plug-in terminals, field wiring terminals are removable
- Easy to install

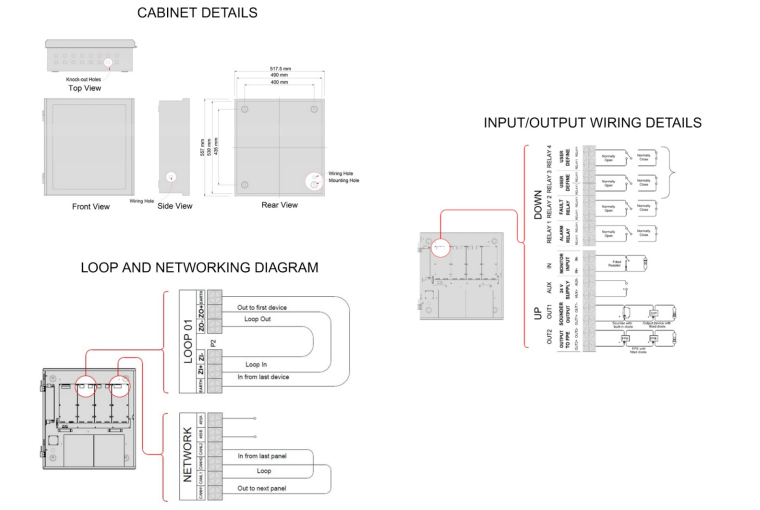

TECHNICAL INFORMATION
Model No | NFA-T01LC | |
| Compliance | EN 54-2 (Incorporating Modules of NFA-T04 CIE) | |
| Loop Capacity | ||
| Loop card | 254 + 254 addressable points | |
| Power Rating | ||
| Voltage Output | 16 to 24VDC | |
| Current | 500 mA | |
| Protocol/Addressing | Norden, Value range from 1 to 254 | |
| DC Surge Protection | 4KV | |
| Power Rating Cable | 1Km Max at 2 x 1.50 mm2 solid core fire resistance | |
| Operating Environment | ||
| Mount Type | Panel Mount | |
| Temperature | -10˚C ~ +55˚C | |
| Relative Humidity | ≤95%, non-condensing | |
ORDERING INFORMATION
Part Number | Description | |
| NFA-T01LC | Loop Card | |
