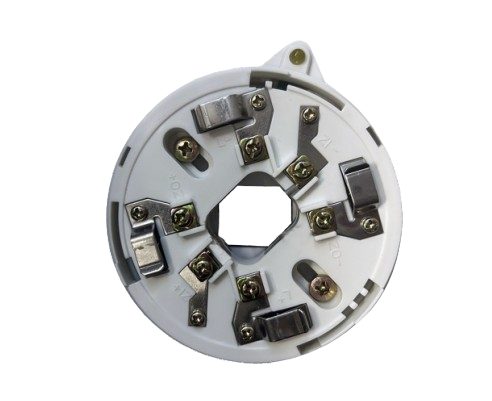

ISOLATOR BASE
NFA-T01IB
The NFA-T01IB Isolator Base is the cutting-edge device manufactured to protect devices in loop from short circuit. In the event of short circuit on the loop the NFA-T01IB Isolator Base isolate the unaffected devices from short circuit, and it will work normally. The base mount short circuit isolator will automatically restore the affected portion of the loop after clearing the fault and continuing to monitor for repairs. The NFA-T01IB manufactured in accordance with EN 54-17 and LPCB approved.
Product Overview
The NFA-T01IB Isolator Base is the cutting-edge device manufactured to protect devices in loop from short circuit. In the event of short circuit on the loop the NFA-T01IB Isolator Base isolate the unaffected devices from short circuit, and it will work normally. The base mount short circuit isolator will automatically restore the affected portion of the loop after clearing the fault and continuing to monitor for repairs. The NFA-T01IB manufactured in accordance with EN 54-17 and LPCB approved.
FEATURES & BENEFITS
- LPCB approved
- EN 54-17 :2005 certified
- LED status indicator
- In the event of short circuit isolates the faulty part of the loop.
- Automatically resetting once the fault is cleared
- Can monitor upto 70 devices
- Surface mounting installation
TECHNICAL INFORMATION
Characteristic | Value | |
| Listed | LPCB | |
| Certified | EN 54-17 :2005 | |
| Operating Voltage | 24 VDC[16V to 28V DC] | |
| Current Consumption | Stand by 0.15mA, Alarm:2.0mA | |
| Addressing | Not separate addressing required | |
| Isolator | Maximum OpenVoltage:11V Minimum Open Voltage:8V Maximum Close Voltage:3V Minimum Close Voltage:1.4V Maximum Continuous Current:500mA Maximum Transient Output Current:5A Maximum Leakage Current:2mA Max Closed Impedance:0.65ohms | |
| Number of Device can Monitor | Max 70 Devices | |
| Output Impedance | 480ohms | |
| Material/Colour | ABS/White Glossy Finishing | |

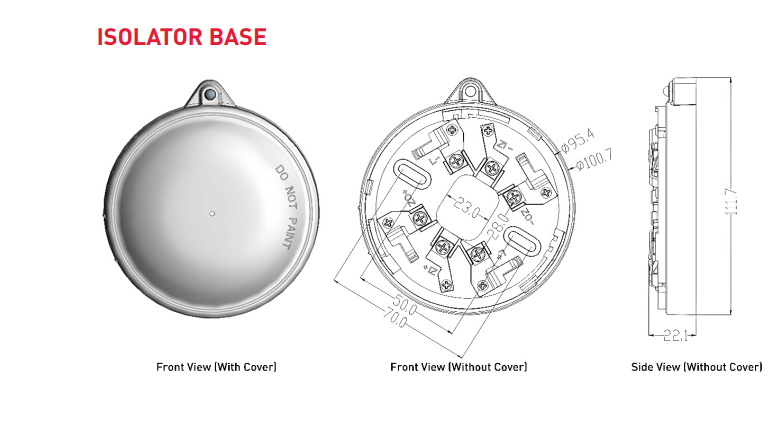

| Dimension/Height | Diameter:100.7/35mm | |
| Weight | 108g (With cover), 91g (Without cover) | |
| Ingress Protection Rating | IP30 | |
| Operating Temperature | ‘-5˚C to 50˚C | |
| Humidity | 0 to 95% Relative humidity, Non condensing | |
ORDERING INFORMATION
Part Number | Description | |
| NFA-T01IB | Isolator Base,Maximum 200 devices in each loop.LPCB Approved,EN 54-17 :2005 Complied | |
