Product Overview
The NFA-T01MD is a modern Intelligent Addressable Multi Detector that combines a Smoke and Heat detection element into one unit. Additionally, the NFA-T01MD Multi Detector is produced in compliance with EN 54-29 standards. Which having inbuilt intelligent processor that provides Algorithm map, Analogue to Digital Convertor, Drift compensation, Self-diagnosis and History log.
FEATURES & BENEFITS
- LPCB approved
- EN 54-29 : 2015
- Smoke and heat sensor
- Inbuilt microprocessor with memory capacity up to 10 events
- Digital addressing and analogue sensing
- Smart linear drift compensation
- Provide real time algorithm to the Fire Alarm Control Panel
- 360˚ Visual LED indicator
- Removable chamber for service
- Ancilliary remote indicator
- Onsite adjustable parameter
TECHNICAL INFORMATION
Characteristic | Value | |
| Listed | LPCB | |
| Certified | EN 54-29 : 2015 | |
| Input Voltage | 24V DC (16V to 28V) | |
| Current Consumption | Stand by 0.6mA, Alarm:4mA | |
| Addressing | Value ranges from 1 to 254 | |
| Smoke Sensitivity | As Per Stipulated Standard | |
| Heat Class Type | A2R | |
| Indicator | Single LED/360˚ Visual | |
| Colour | White Glossy Finishing | |
| Material | ABS | |

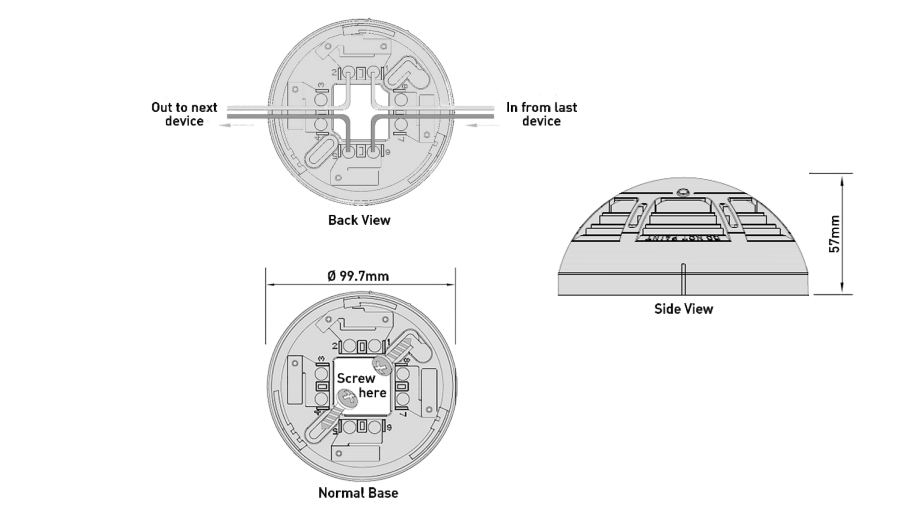

| Dimension/Height | Diameter 99.7 mm/ 57 mm | |
| Weight | 145 g(with base), 90 g(without base) | |
| Operating Temperature | -10˚C to +50˚ C | |
| Humidity | 0 to 95% Relative humidity, Non condensing | |
ORDERING INFORMATION
Part Number | Description | |
| NFA-T04FP | 4 Loop LPCB Approved. 7″ LCD display touch screen, Fitted with 2x Dual loop card, basic configuration up to 1016 Addressable Devices, Expandable to 6 loop by adding loop.Built in Glass Door and Printer. Built in 4 in 1 Communication card | |
| NFA-T04-2FP | 2 Loop LPCB Approved. 7″ LCD display touch screen, Fitted with 1x Dual loop card, basic configuration up to 508 Addressable Devices, Expandable to 6 loop by adding loop card.Built in Glass Door and Printer. Optional 4 in 1 Communication card. | |
| NFA-T04-1FP | 1 Loop LPCB Approved. 7″ LCD display touch screen, Fitted with 1x single loop card, basic configuration up to 254 Addressable Devices, Expandable to 6 loop by adding loop card.No Glass Door, Optional Printer and 4 in 1 Communication card. | |
