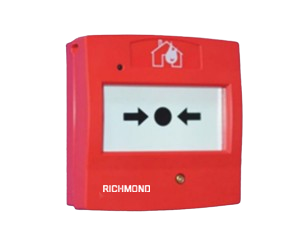

INTELLIGENT ADDRESSABLE MANUAL CALL POINT
NFA-T01CP
The NFA-T01CP is an Addressable Manual Call Point is using microprocessor technology. It enables the system to get the swift response from the call point to Fire Alarm Control Panel. The NFA-T01CP Manual Call Point use a non-breakable glass. Applying light pressure on the Manual Call Point will trigger the alarm signal, and inbuilt LED will turn on to steady light. Using reset key and protected flap Manual Call Point can reset. The NFA-T01CP Addressable Manual Call Point is produced in accordance with the EN 54-11 standard.
Product Overview
The NFA-T01CP is an Addressable Manual Call Point is using microprocessor technology. It enables the system to get the swift response from the call point to Fire Alarm Control Panel. The NFA-T01CP Manual Call Point use a non-breakable glass. Applying light pressure on the Manual Call Point will trigger the alarm signal, and inbuilt LED will turn on to steady light. Using reset key and protected flap Manual Call Point can reset. The NFA-T01CP Addressable Manual Call Point is produced in accordance with the EN 54-11 standard.
FEATURES & BENEFITS
- LPCB approved
- EN 54-11 :2001 + A1:2005 Certified
- Inbuilt microprocessor
- Digital addressing
- Non breakable glass with reset key
- Semi flush mounted and indoor application
- Safe to operate and easy to restart
TECHNICAL INFORMATION
Characteristic | Value | |
| Listed | LPCB | |
| Certified | EN 54-11 :2001 + A1:2005 | |
| Input Voltage | 24V DC (16V to 28V) | |
| Current Consumption | Stand by 0.6mA, Alarm:1.8mA | |
| Addressing | Value ranges from 1 to 254 | |
| Alarm Mode | Push Button | |
| Reset Option | Using special key | |
| Indicator | Single LED/Steady ON when Pressed | |
| Colour | Red glossy finishing | |
| Material | Fire Proof ABS | |
| Dimension/Height | 89mm x 93 mm x 35 mm | |
| Weight | 102g (with base), 80 g (without base) | |
| Operating Temperature | -10˚C to +50˚ C | |
| Humidity | 0 to 95% Relative humidity, Non condensing | |
ORDERING INFORMATION
Part Number | Description | |
| NFA-T01CP | LPCB Approved Addressable Manual Call Point. Resetable and non-breaking glass, EN 54-11 :2001 + A1:2005 Certified | |
| NFA-T01FC | Optional Protective Flip Cover | |
