HYBRID
ENC-HVD5F-30R-69

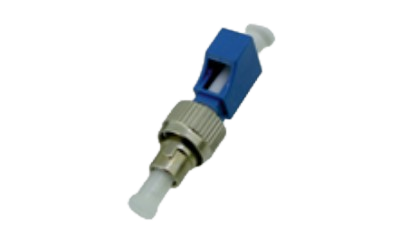

hybrid fast connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. These hybrid fast connectors are compatible with 0.9 mm tight buffer, 2 mm & 3 mm drop cable. This connector during the installation process does not require any adhesive and curing process. It is possible to rework so can be reduced the defect rate by worker’s connection error.
Product Overview
hybrid fast connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. These hybrid fast connectors are compatible with 0.9 mm tight buffer, 2 mm & 3 mm drop cable. This connector during the installation process does not require any adhesive and curing process. It is possible to rework so can be reduced the defect rate by worker’s connection error.
FEATURES
- Quick, easy installation.
- High quality Zirconia PC ferrule.
- 900 micron, 2mm, 3mm cable applications
- Telcordia-style strain and relief boot.
STANDARDS COMPLIANCE
- UL-V0 flammability rating
- TIA/EIA-568-C.3 (Optical Fibre Cabling Components Standard)
- ANSI/TIA/EIA-455B (Standard Test Procedure for Standard Fibre Optic Fibres, Cables, Connecting & Terminating Devices)
- IPC-8497-1 (Cleaning Methods & Contamination Assessment for Optical Assembly)
DESIGN & MATERIALS
LC | FC | SC | |
Connector Ferrule | PEI | Zinc Alloy | PBT |
Alignment Sleeve | Ceramic | Ceramic | Ceramic |
Connector Body | PEI | Zinc Alloy | Zinc Alloy |
| Crimp Insert/Crimp Tube | Aluminium | Ceramic | Aluminium |
| Dust Cap | PP | LDPE | LDPE |
| Connector Style | SC, FC, ST, LC | ||
| Polish | PC, UPC & APC |
ENVIRONMENTAL & MECHANICAL DATA
Operating Temperature | -20℃~+75℃ |
Storage Temperature | -20℃~+75℃ |
Temperature Cycling (61300-2-18) | -20℃~+75℃ |
High Temperature (61300-2-18) | 75°C |
Vibration-Mated Pair (61300-2-1) | 1000times |
Mating Durability (61300-2-2) | 1000times |
COMPLIANCE
- ANSI/TIA-568-C.3
- ANSI/TIA-604-3 (SC),-10A(LC) Connector Intermateability Standards.
- Meets GR-326; General Requirements for Single Mode Connectors.
FEATURES
- Low insertion loss
- High corrosion resistance
- High interface performance
- High return loss
- Easy to handle
- Environmentally stable
APPLICATIONS
- Telecom network
- Ethernet network

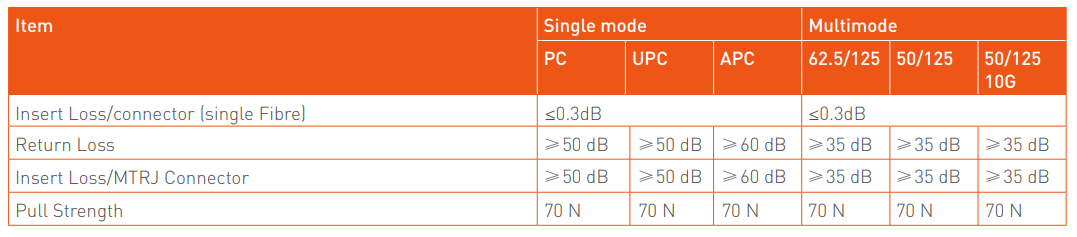

SPECIFICATIONS
Fibre Diameter | 125 μm |
Fibre Mode | Single Mode |
Temperature | -20℃~+75℃ |
Colour | Green (APC), Blue (UPC) |
| Part Number | Description |
| 37-HSCLCOM32 | SC/UPC – LC/UPC Multimode OM3 Simplex Hybrid Fast Connector |
| 37-HSCLCOS22 | SC/UPC – LC/UPC Singlemode OS2 Simplex Hybrid Fast Connector |
| 37-HFCLCOM32 | FC/UPC – LC/UPC Multimode OM3 Simplex Hybrid Fast Connector |
| 37-HFCLCOS22 | FC/UPC – LC/UPC Singlemode OS2 Simplex Hybrid Fast Connector |
