EXPLOSION PROOF BULLET CAMERA
ENC-HBU5M-100R-24
Product Overview
MODEL | Model No. | ENC-HBU5M-100R-24 |
Type | 2MP EXPLOSION PROOF BULLET CAMERA | |
CAMERA | Image Sensor | 1/2.8″ CMOS Progressive 2.0 MegaPixel |
| Day / Night | IR Cut Filter with Auto Switch | |
Lens Type | Motorized | |
Focal Length | 2.7-13.5 mm | |
| Focus | Auto / Manual | |
| Iris | DC Auto Iris | |
| Lens Mount | Φ14 | |
| Angle of View (H) | 102.8° ~ 31.3° | |
| Angle of View (V) | 57.3° ~ 17.6° | |
| Angle of View (D) | 117.6° ~ 35.9° | |
| Angle Adjustment | Bracket; Pan: 0~360°, Tilt: 0~75°, Rotate: 0~360° | |
| Aperture Range | F1.6 ~ F3.3 | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto / Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.6, B/W: 0 lux with IR | |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | ≥60 dB | |
| Defog | Smart Defog | |
| WDR | 120 dB | |
| Smart IR | Up to 100 m | |
| Wavelength | 850 nm | |
DORI | Lens | 2.7 ~ 13.5mm |
Detection | 38.5 ~ 165.5m | |
| Observation | 15 ~ 65.5m | |
| Recognition | 7.5 ~ 33m | |
| Identification | 3.5 ~ 16.5m | |
VIDEO | Max. Resolution | 1920×1080 |
| Video Compression | Enhanced (H.265, H.264), H.265, H.264, MJPEG | |
Frame Rate | Main Stream: (1920×1080, 1280×720, 704×480, 640×480) @ 30fps,(1920×1080, 1280×720, 704×576, 640×480) @ 25fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps Third Stream: (704×480, 704×240, 352×240) @ 30fps, (704×576, 704×288, 352×288) @ 25fps | |
Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| EIS | Supported | |
| Video Bit Rate | 32 kbps ~ 8 Mbps | |
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night | |
| White Balance | Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual | |
| Corridor Mode | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| OSD | Up to 8 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 32×32, 48×48, 64×64), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 8 regions | |
AUDIO | Audio Compression | G.711A, G.711U, ADPCM_D, AAC_LC |
Audio Bit Rate | 8 kbps, 32 kbps, 48 kbps | |
| Audio I/O | 1/1 | |
| Audio Voltage | Audio input, level 5V, input impedance 1500 ohms Audio output, level 3V, output impedance 100 ohms | |
SMART | Behavior Detection | Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Loitering, Running, Abandoned Object (Object Left), Missing Object (Object Lost), Parking | |
Statistical Analysis | Face Detection (Capture), People Counting, Crowd Detection, On Duty Detection, Helmet Detection, Human & Vehicle Classification, Abnormal Video & Audio Detection | |
Alarm Management | Motion Detection, Tampering (Masking), Input & Output Event, IP & MAC Address Conflict, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot | |
| Alarm Notifications | E-mail(Notification & Snapshot), HTTP(Alarm icon), FTP(Snapshot & Recording ), SD Card(Recording) | |
INTERFACE | Protocols | TCP/IP, UDP, IPv4 ,IPv6, ICMP, HTTP, HTTPS, FTP, NFS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), IGMP, 802.1X, QoS (DSCP), Unicast, Multicast, ARP, SNMP, SSL, SFTP , P2P |
Security | AES 128 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF Profile (S, G, T, M), SDK/API/CGI | |
| Network | 1 x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Alarm I/O | 2/1 (Customizable) | |
| Alarm Voltage | Input (switch type) , Output (3.3V-12V, 10 ohm) | |
| Serial Interface | 1 x RS485 | |
| Edge Storage | Micro SD card slot, up to 512 GB | |
| ANR | Supported | |
| Built-in Heater | Supported | |
| Wiper | Supported | |
| Cable Interface | Pig Tail | |
| Remote Connection | ≤7 | |
| Web Language | 15 | |
| Client Application | EyeConnect | |
GENERAL | Power Supply | 110V ~ 240V AC, PoE++ (IEEE 802.3bt), (Optional 24V DC, 48V DC, 24V AC) |
| Max. Power Consumption | ≤30W (with thermostat) | |
Working Temperature | -40 °C ~ 70 °C | |
Working Humidity | ≤95% RH (non-condensing) | |
| Atmospheric Pressure | 80 kPa ~ 106 kPa | |
| Window glass | Strong tempered glass | |
| Sun Shade | Supported | |
| Surge Protection | TVS4000V | |
| Ingress Protection | IP68 | |
| Reset Button | Supported | |

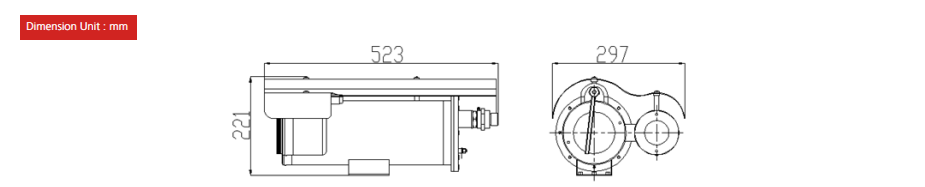

| Dimensions | 523x297x221 mm | |
| Net Weight | 15.5 kg |
| Part Number | Description | Standard Quantity |
| ENC-HBU5M-100R-24 (With 2.7 to 13.5mm Motorized Len and 110V ~ 240V AC) | 2MP SS316L Explosion Proof IR IP H.265 Bullet Camera with 2.7 to 13.5mm Motorized Lens, SD Card Slot, WDR, Smart Analytics, Wiper and 100m IR Support | 1 |
| ENC-HBU5M-100R-24 (With 2.7 to 13.5mm Motorized Len and 24V DC) | 2MP SS316L Explosion Proof IR IP H.265 Bullet Camera with 2.7 to 13.5mm Motorized Lens, SD Card Slot, WDR, Smart Analytics, Wiper and 100m IR Support | 1 |
| ENC-HBU5M-100R-24 (With 2.7 to 13.5mm Motorized Len and 24V AC) | 2MP SS316L Explosion Proof IR IP H.265 Bullet Camera with 2.7 to 13.5mm Motorized Lens, SD Card Slot, WDR, Smart Analytics, Wiper and 100m IR Support | 1 |
| ENB-BZUW68 | Wall Mount Bracket for Norden Explosion / Corrosion Proof Bullet Camera | 1 |
| ENB-BZUH68 | Corner Mount Bracket for Norden Explosion / Corrosion Proof Bullet Camera | 1 |
| ENB-BZUV68 | Pole Mount Bracket for Norden Explosion / Corrosion Proof Bullet Camera | 1 |
| ENA-EXH010 | 1 Meter Explosion / Corrosion Proof Hose for Norden Explosion / Corrosion Proof Camera | 1 |
| ENA-EXH015 | 1.5 Meter Explosion / Corrosion Proof Hose for Norden Explosion / Corrosion Proof Camera | 1 |
| ENA-EXH020 | 2 Meter Explosion / Corrosion Proof Hose for Norden Explosion / Corrosion Proof Camera | 1 |
