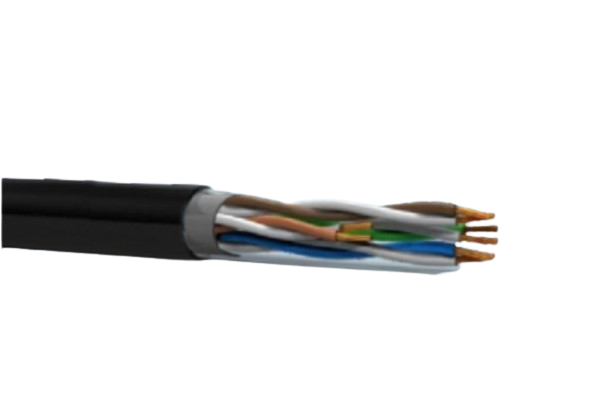

Category 6 U/UTP 23AWG 4 Pair Double Jacket Cable LSZH
Category 6 UTP Cables exceed Category 6 / Class E specification. It is tested to 250 MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications up to 100m. Extremely high pair balance providing excellent EMC, minimizing radiation, maximizing noise immunity and providing high alien cross talk performance to UTP cabling systems. These external cables are constructed with UV resistant heavy duty FR PVC outer sheath and LSZH Compound inner sheath.
Product Overview
Category 6 UTP Cables exceed Category 6 / Class E specification. It is tested to 250 MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications up to 100m. Extremely high pair balance providing excellent EMC, minimizing radiation, maximizing noise immunity and providing high alien cross talk performance to UTP cabling systems. These external cables are constructed with UV resistant heavy duty FR PVC outer sheath and LSZH Compound inner sheath.

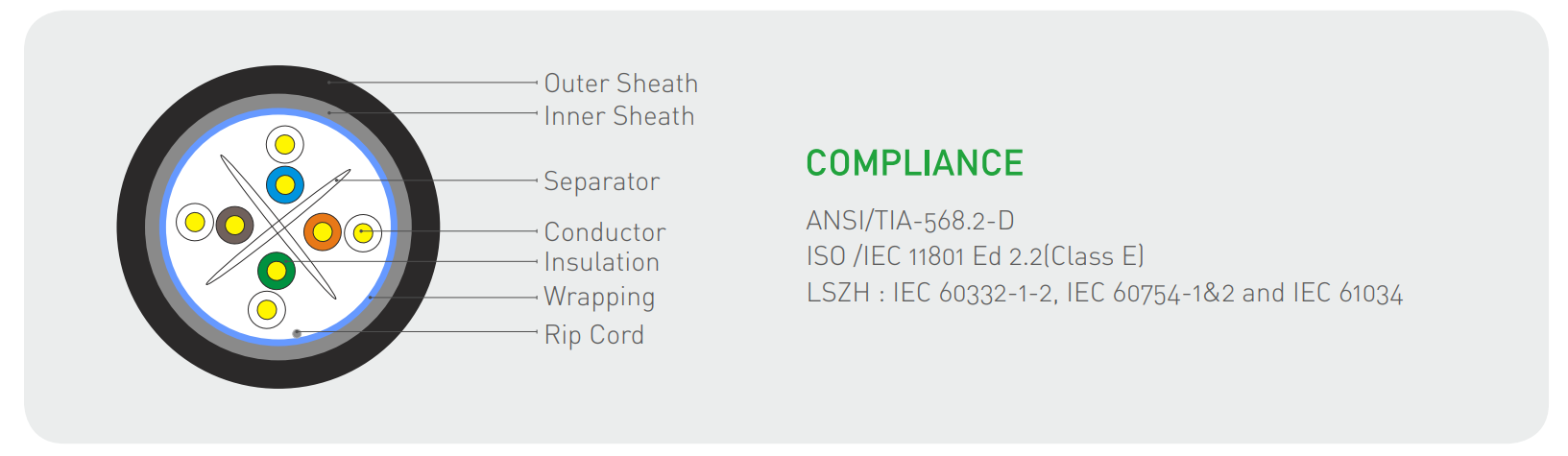

MATERIAL CONSTRUCTION & DESIGN
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23AWG |
| Conductor Construction | Solid |
| Insulation material | HDPE |
| Pairs | 4 |
| Wrapping | Overall Polyester Tape |
| Rip cord | Yes |
| Inner Sheath Material | LSZH Compound |
| Inner Sheath Color | Grey/Black |
| Outer Sheath Material | UV resistant heavy duty FR PVC |
| Outer Sheath External O.D. | 10.3±1.0 mm |
| Outer Sheath Color | Black |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Frequency Range | 1 – 250 MHz |
| Impedance | 100 Ω ±15 |
| DC Resistance | 9.38 Ω/100m max |
| Max resistance unbalance | 5% |
| Capacitance Unbalance | 3.3 pF/m max. |
| Propagation Delay skew | 45 ns/100m max |
| Velocity of propagation | 69%nom |
| Propagation Delay Skew | 45 ns/100m max. |
| Tensile Strength – Short Term | 110N |
| Insulation Resistance | Min. 5000 M.Ohm km |
| Min. Bend Radius | 8XOD |
| Operating Temperature | -40 °C +60 °C |
TRANSMISSION PERFORMANCE
Cat. 64 pair cables*| Freq. MHz | Attenuation dB/100m @ 20ºC | NEXT dB | PSNEXT dB | RL dB | ELFEXT dB | PSELFEXT dB |
| 1 | 2.1 | 65.0 | 62.0 | 19 | 63.3 | 60.3 |
| 4 | 4 | 63 | 60.5 | 19 | 51.2 | 48.2 |
| 8 | 5.7 | 58.2 | 55.6 | 19 | 45.2 | 42.2 |
| 10 | 6.3 | 56.6 | 54 | 19 | 43.3 | 40.3 |
| 16 | 8 | 53.2 | 50.6 | 18 | 39.2 | 36.2 |
| 20 | 9 | 51.6 | 49 | 17 | 37.2 | 34.2 |
| 25 | 10.1 | 50 | 47.3 | 17 | 35.3 | 32.3 |
| 31.25 | 11.4 | 48.4 | 45.7 | 17 | 33.4 | 30.4 |
| 62.5 | 16.5 | 43.4 | 40.6 | 14 | 27.3 | 24.3 |
| 100 | 21.3 | 39.9 | 37.1 | 12 | 23.3 | 20.3 |
| 200 | 31.5 | 34.8 | 31.9 | 9 | 17.2 | 14.2 |
| 250 | 36 | 33.1 | 30.2 | 8 | 15.3 | 12.3 |
| Part Number | Description | Standard Length |
| 113-20227104X | Category 6 U/UTP 23AWG 4 Pair Double Jacket Cable LSZH/FR PVC(UV Resistant) | 305 mtr |
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
