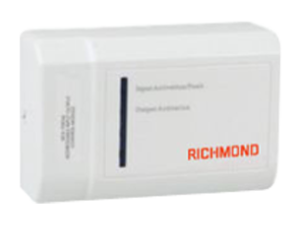

ADDRESSABLE INPUT OUTPUT CONTROL MODULE
NFA-T01CM
The NFA-T01CM Addressable Input Output Control Module basically multifunction module, it can act alone as Input Module, Output Module or Control Module. NFA-T01CM plays a major role in interfacing third party system into Fire Alarm Control Panel. The Control Module used for overriding equipment like Lift Return, Door Holder, Extract Fans, Air Handling Unit etc. And it incorporates an intelligent processor that provide automatic monitoring for both open and short circuit of Input signal line. The NFA-T01CM manufactured in accordance with the standard EN 54-18.
Quick Enquiry
DataSheet
Manual Download
Product Overview
The NFA-T01CM Addressable Input Output Control Module basically multifunction module, it can act alone as Input Module, Output Module or Control Module. NFA-T01CM plays a major role in interfacing third party system into Fire Alarm Control Panel. The Control Module used for overriding equipment like Lift Return, Door Holder, Extract Fans, Air Handling Unit etc. And it incorporates an intelligent processor that provide automatic monitoring for both open and short circuit of Input signal line. The NFA-T01CM manufactured in accordance with the standard EN 54-18.
FEATURES & BENEFITS
- LPCB approved
- EN 54-18 :2005 Compliance
- Built in microprocessor and digital addressing
- Fire or supervisory Input signal configuration
- 24VDC /2A Output Relay contact and Control module
- Onsite Adjustable Parameter
- Loop or external power input
- LED Status indicator
- Surface mounting
TECHNICAL INFORMATION
| Characteristic | Value | |
| Listed | LPCB | |
| Certified | EN 54-18 :2005 | |
| Input Voltage | Loop Power:24 VDC[16V to 28V DC] External PSU:20 to 28VDC | |
| Current Consumption | Loop: Standby 0.6mA, Alarm: 1.6mA, External PSU: Standby 0.6mA, Alarm: 45mA | |
| Addressing | Value ranges from 1 to 254 | |
| Control Output Voltage | 24VDC/2A rating | |
| Input Resistance | 5.1Kohms/ ¼W | |
| Output Relay | Normally Open/Close | |
| Material/Colour | ABS/White glossy finishing | |

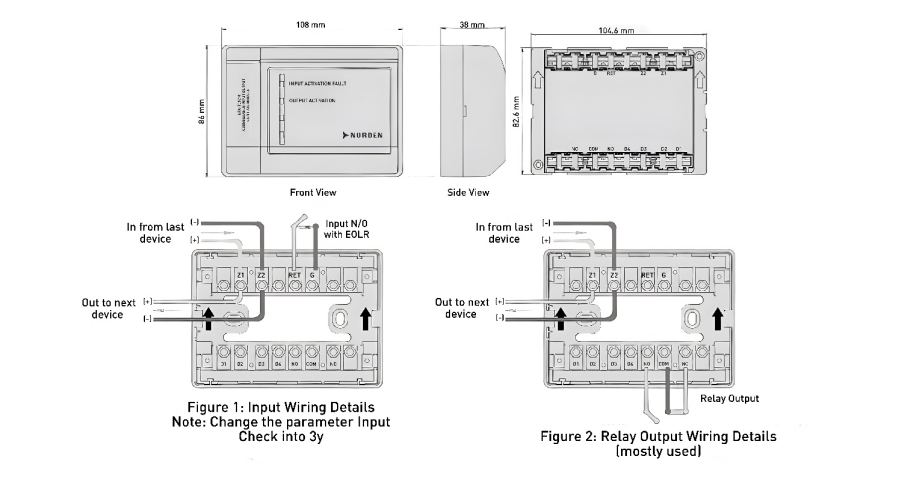

| Dimension/Weight | L: 108mm x W:86mm x H:38 mm | |
| Weight | 170g(with base), 92g (without base) | |
| Accessories | Mounting Back Box/NFA-T01BB | |
| Ingress Protection Rating | IP30 | |
| Indicator Status | Single LED / Steady On when pressed | |
| Operating Temperature | -10˚C to +50˚ C | |
| Humidity | 0 to 95% Relative humidity, Non condensing | |
ORDERING INFORMATION
| Part Number | Description | |
| NFA-T01CM | Addressable Input Output Control Module, loop powered.or external 24VDC powered selectable. LPCB and EN 54-18:2005 Approved. | |
