8x8 Digital Audio Matrix
NVS-PA0001008MP
The NVS-PA0001008MP is a 8×8 Digital Audio Matrix that supports multiple sources and several zones for paging. It offers remote paging, remote panel control, remote PC & Android pad control, as well as 8 balanced audio inputs and 8 balanced audio outputs. It provides multiple audio inputs. In addition to 8 AUX inputs, it has built-in FM and enables internal or external USB MP3 playback. It provides TEL paging to all zones, one-touch alarm, 8 dry contact inputs, and 1 dry contact output to better adapt to the emergency system. It offers a comprehensive solution for multi-zone, multi-functional buildings including entertainment venues, huge hotels, sports facilities, malls, and airports, among others.
Product Overview
The NVS-PA0001008MP is a 8×8 Digital Audio Matrix that supports multiple sources and several zones for paging. It offers remote paging, remote panel control, remote PC & Android pad control, as well as 8 balanced audio inputs and 8 balanced audio outputs. It provides multiple audio inputs. In addition to 8 AUX inputs, it has built-in FM and enables internal or external USB MP3 playback. It provides TEL paging to all zones, one-touch alarm, 8 dry contact inputs, and 1 dry contact output to better adapt to the emergency system. It offers a comprehensive solution for multi-zone, multi-functional buildings including entertainment venues, huge hotels, sports facilities, malls, and airports, among others.
FEATURES
- 7” touch screen control interface
- Integrated with audio matrix, zones, timing, voice alarm, etc.
- 8 channel balanced audio inputs, 8 channel balanced audio outputs
- Each zone support remote panel control
- Support 4 remote paging microphone, 2 local Mic with phantom power
- Support MP3 playing (built-in audio or external USB) and FM
- Built-in 4GB memory, can extend up to 32GB
- Support monitoring function, can monitor each individual zone separately
- Support remote computer control and Android pad control within the same network
- Support AC Power input and DC 24V input
| SPECIFICATIONS | ||
Model | NVS-PA0001008MP | |
| Frequency Response (±3dB) | MIC I/O : 80Hz~10kHz(±3dB) | |
| Line I/O : 20Hz~20kHz(±3dB) | ||
| Input Sensitivity | MIC1 & MIC2 : 10mV | |
| Line 1-8 : 250mV | ||
| EMC : 250mV | ||
| Total Harmonic Distortion | <1% 1KHz | |
| Radio Frequency Band | 86Hz -108MHz | |
| Maximum Output Noise | <3mV | |
| Output Voltage | Lines 1-8 : 1V | |
| Power Supply | AC110V or AC220V/50Hz/DC 24V | |
| Weight | 10Kg | |
| Dimension | 484×375×132mm | |

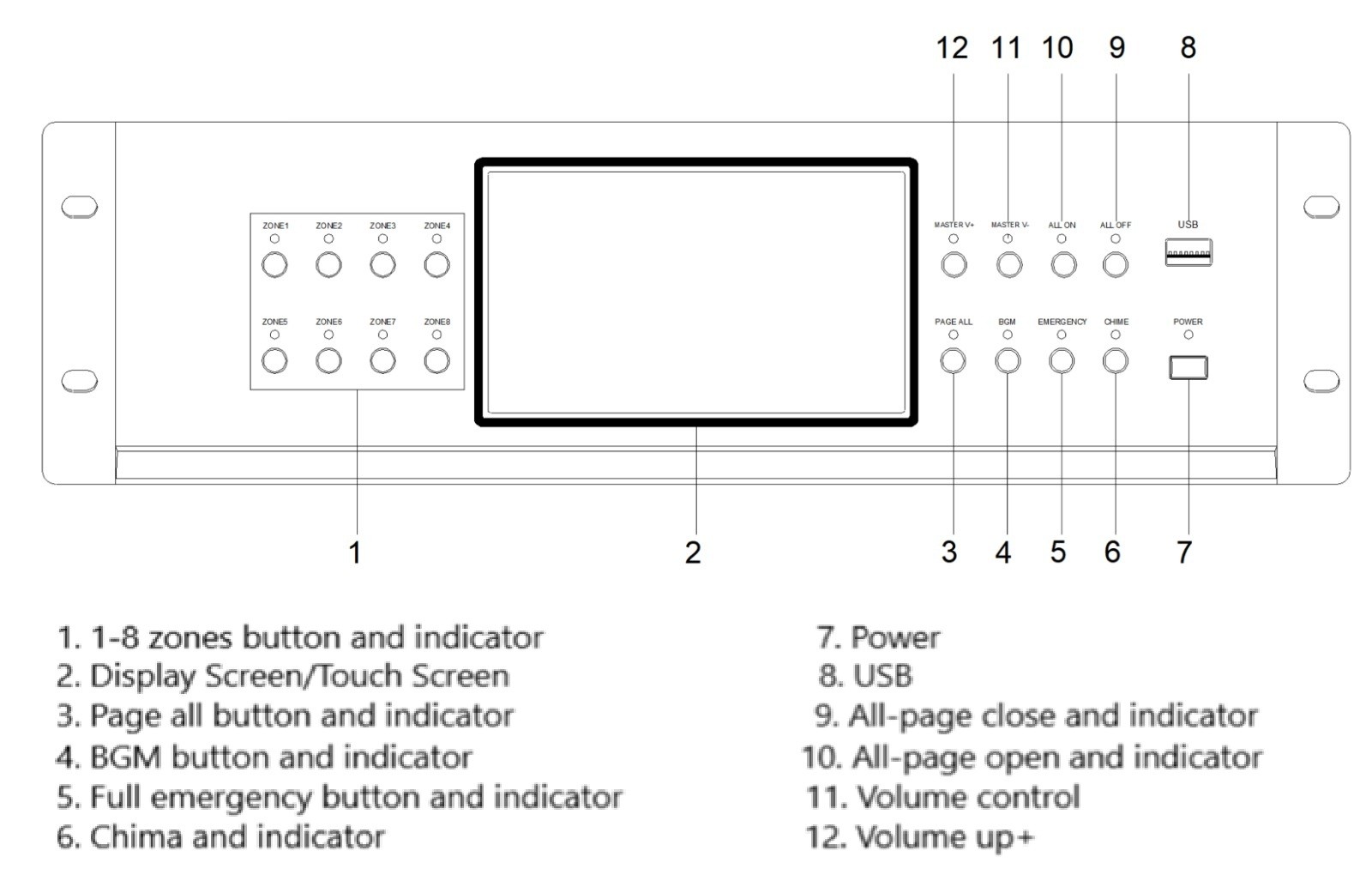

FRONT PANEL

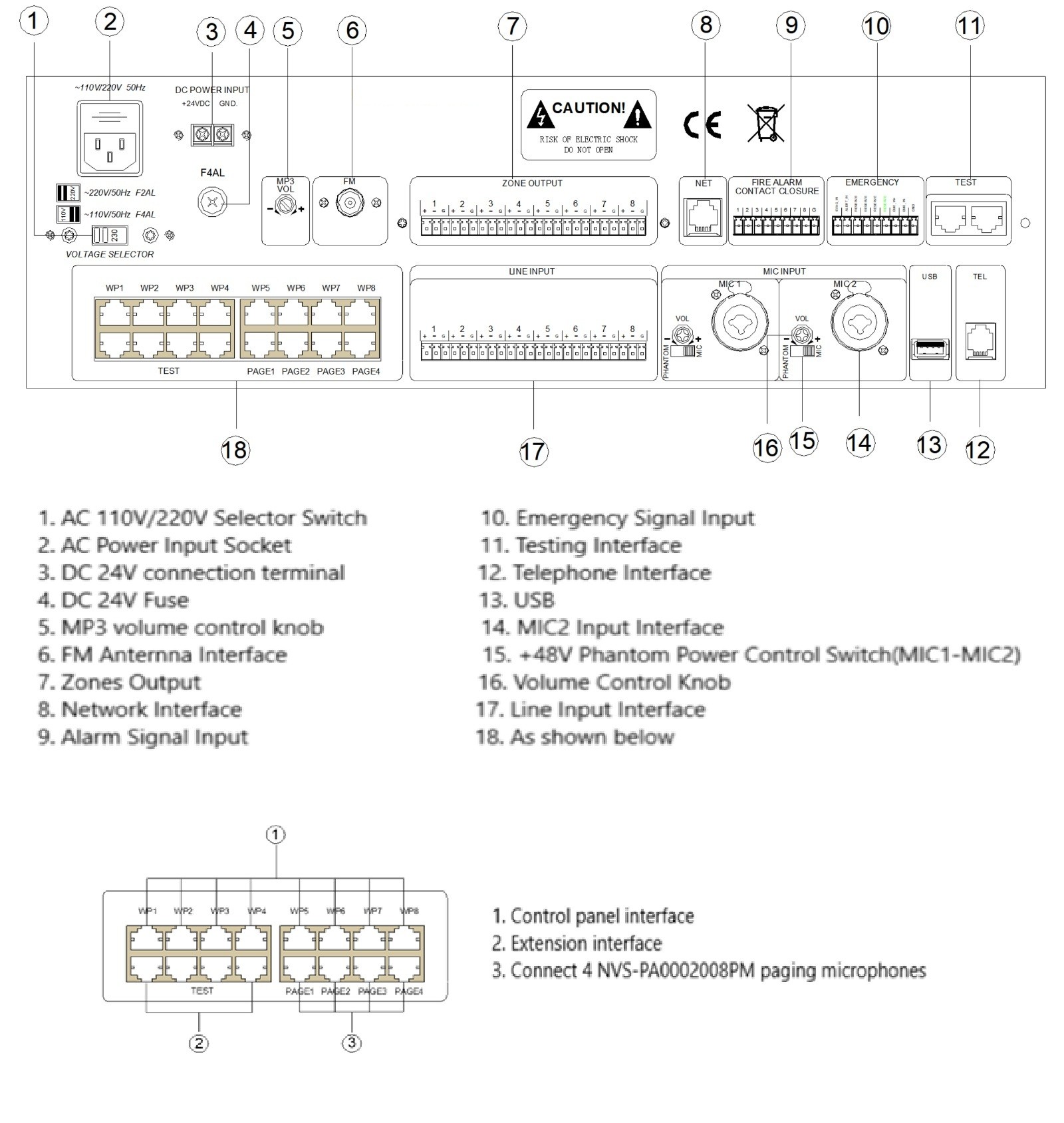

REAR PANEL
| Part Number | Description | Standard Quantity | ||
| NVS-PA0001008MP | 8×8 DIGITAL AUDIO MATRIX PROCESSOR | 01 | ||
ACCESSORIES INFORMATION
| Description | Standard Quantity |
| 12P green plug with lock | 04 |
| 9P green plug | 02 |
| 10A MP-P power cord | 01 |
| 5×19 cross recessed countersunk head screws | 04 |
| Washer | 04 |
| User Manual | 01 |
