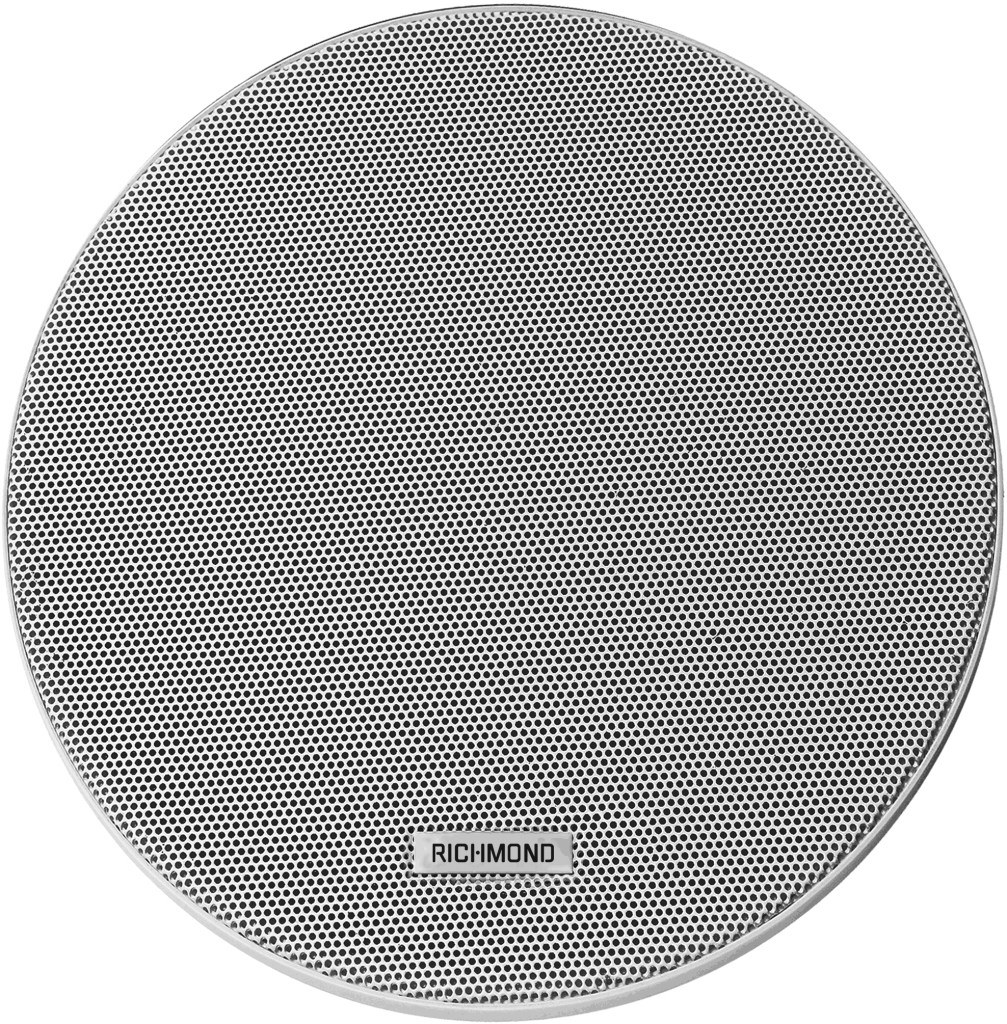

6.5"NARROW EDGE CEILING SPEAKER WITH ALUMINIUM MESH 10W
NVS-10140010CS
The NVS-10140010CS is a narrow edge Ceiling Speaker with built-in 70V/100V transformer. The transmission takes place in a high voltage, low-current environment. Low-current mode allows for longer transmission distances and parallel connections of many loudspeakers. It is made of high-quality engineering plastic, which assure a long-term durability and never out of shape and will not fade. It is an ideal choice for places such as, schools, square halls, parking lots, railway stations, airports, villa communities and mall supermarkets, recreation facilities.
Product Overview
The NVS-10140010CS is a narrow edge Ceiling Speaker with built-in 70V/100V transformer. The transmission takes place in a high voltage, low-current environment. Low-current mode allows for longer transmission distances and parallel connections of many loudspeakers. It is made of high-quality engineering plastic, which assure a long-term durability and never out of shape and will not fade. It is an ideal choice for places such as, schools, square halls, parking lots, railway stations, airports, villa communities and mall supermarkets, recreation facilities.
FEATURES
- Anti-UV plastic
- Fashionable
- Long life
- Big power design

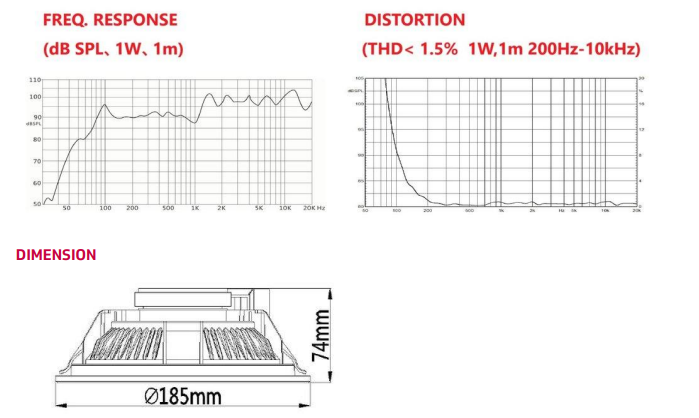

| SPECIFICATIONS | ||
Model | NVS-10140010CS | |
| Rated Power | 10W | |
| Driver Size | 6.5″ inch | |
| Frequency Response | 120Hz -16KHz | |
| Input Voltage/Impedance | 70V/100V | |
| Coverage Angle | 175° | |
| Input Connection | Two-wire Cable | |
| Sensitivity (1m,1w) | 90dB±2dB | |
| Maximum SPL (1m) | 100dB±2dB | |
| Cutout size | Φ165mm-170mm | |
| Operating temperature | -25℃~+57℃ | |
| Dimension | Ø185x74mm | |
| Weight | 0.9Kg | |
| Part Number | Description | Standard Quantity | ||
| NVS-10140010CS | 6.5″ NARROW EDGE CEILING SPEAKER WITH ALUMINIUM MESH 10W | 01 | ||
