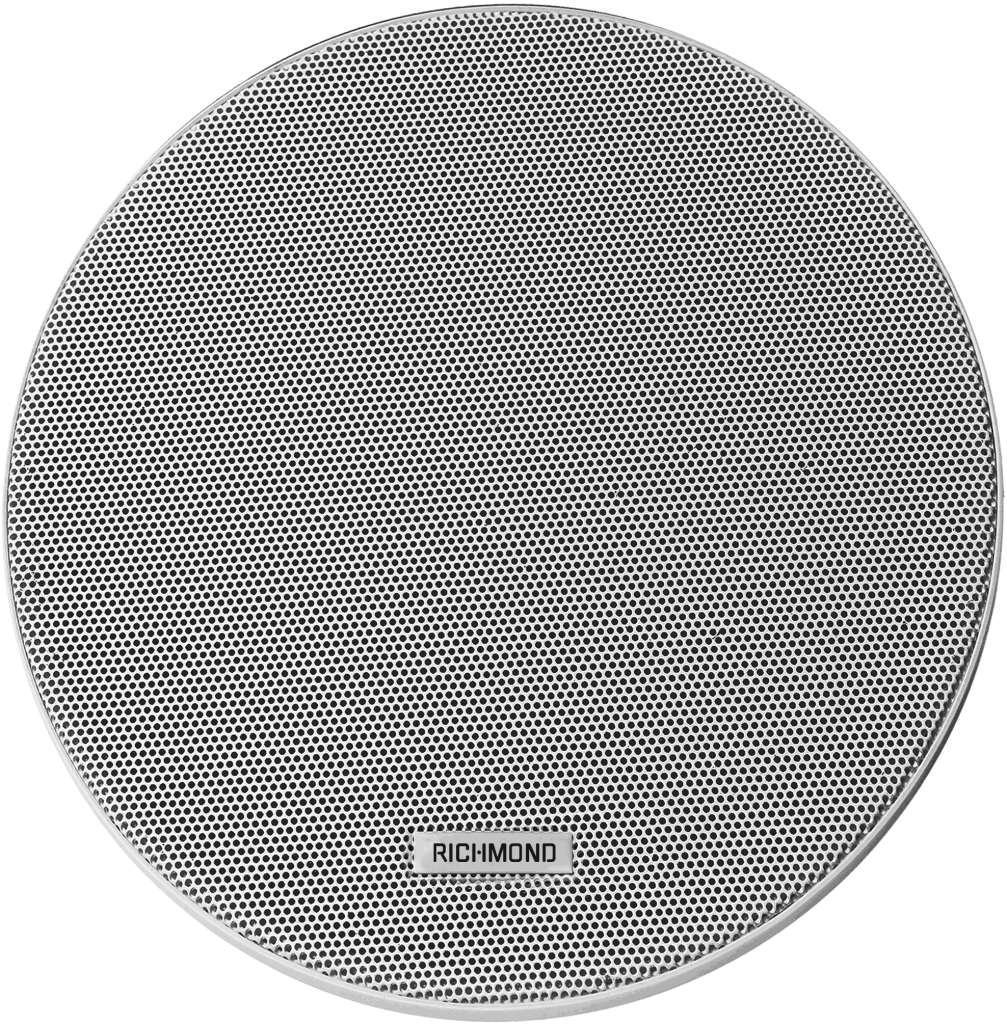

6.5″ NARROW EDGE CEILING SPEAKER WITH ALUMINIUM MESH 6W

6.5" NARROW EDGE CEILING SPEAKER WITH ALUMINIUM MESH 6W

NVS-10090006CS

The NVS-10090006CS is a Narrow Edge surface mount ceiling speaker with a 70V/100V transformer built in. The 70V/100V transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. It’s easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc.
Quick Enquiry
DataSheet
User Manual

Product Overview

The NVS-10090006CS is a Narrow Edge surface mount ceiling speaker with a 70V/100V transformer built in. The 70V/100V transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. It’s easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc.

FEATURES

  • Aluminium mesh
  • Easy installation
  • Durable plastic
  • Damping for dangling edge
SPECIFICATIONS

Model

NVS-10090006CS

Rated Power 6W
Driver Size6.5″ inch
Frequency Response110Hz-15KHz
Power Taping Options3/6W
Cutout sizeØ165-170mm
Coverage Angle 175°
Connector TypeQuick push type lock
Input Voltage/Impedance70V/100V
Sensitivity (1m,1w) 90dB±2dB
Maximum SPL (1m) 97dB±2dB
Operating temperature-25℃~+57℃
Dimension Ø190.5x70mm
Weight0.6Kg
Part NumberDescriptionStandard Quantity
NVS-10090006CS6.5″ NARROW EDGE CEILING SPEAKER WITH ALUMINIUM MESH 6W01
ACCESSORIES

DescriptionStandard Quantity
User Manual01
