4X60W 4 CHANNELS DIGITAL POWER AMPLIFIER
NVS-20130244AM
The NVS-20130244AM is a class D, four channel digital Power Amplifier with rack mount design in 1U type and rated power is 4x60W. For each channel, there are balanced and unbalanced line inputs available. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. When choosing alternative speaker pairings, 70V and 100V speaker outputs are suitable for installation. Complete protection includes overload, high temperature, short circuit, and clip. Equipped with indications for power, signal, clip, protection and temperature. It is an ideal choice for commercial and industrial public address applications.
Product Overview
The NVS-20130244AM is a class D, four channel digital Power Amplifier with rack mount design in 1U type and rated power is 4x60W. For each channel, there are balanced and unbalanced line inputs available. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. When choosing alternative speaker pairings, 70V and 100V speaker outputs are suitable for installation. Complete protection includes overload, high temperature, short circuit, and clip. Equipped with indications for power, signal, clip, protection and temperature. It is an ideal choice for commercial and industrial public address applications.
FEATURES
- Multiple channels in 19” standard rack

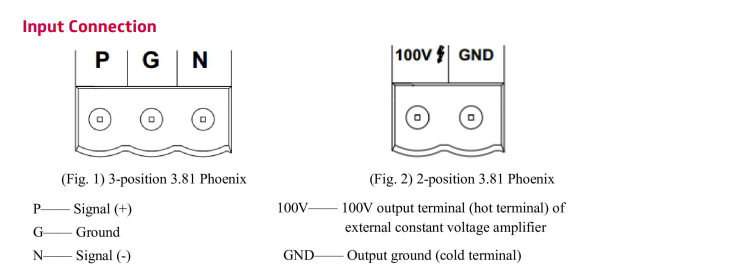

- Equipped with priority input function and 100V input available
- Complete protection includes overload, high temperature, short circuit, and clip
- Equipped with standby function for power saving

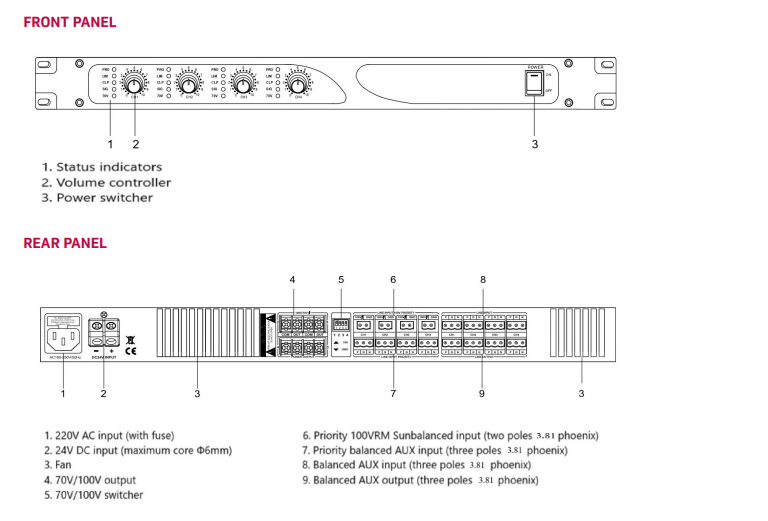

- Equipped with indications for power, signal, clip, protection and temperature
- 1 U slim design, space and cost saving
- 70V/100V power output optional
| SPECIFICATIONS | ||
Model | NVS-20130244AM | |
| Channels | 4 | |
| Rated power/channel | 60W | |
| Frequency Response | 80Hz – 15kHz (±3dB) | |
| Input Sensitivity | 775mVRMS (0dBV/balanced input); | |
| 100VRMS (100V unbalanced input) | ||
| Input Impedance | 60KΩ (balanced) | |
| 20KΩ (priority) | ||
| 100KΩ (100V unbalanced) | ||
| Total Harmonic Distortion | <0.3 % (1kHz) | |
| Signal to Noise Ratio | > 80dB | |
| Rated Output Voltage | 70V/100V | |
| Power Supply | AC 180-260V/50-60Hz, DC24V(rated power -3dB) | |
| Power Consumption | 300W | |
| Dimension (L×W×H) | 483×435×44 mm | |
| Weight | 6.4 Kg | |
| Part Number | Description | Standard Quantity | ||
| NVS-20130244AM | 4x60W 4 CHANNELS DIGITAL POWER AMPLIFIER | 01 | ||
ACCESSORIES INFORMATION
| Description | Standard Quantity |
| 10A National Standard MP-P power line | 01 |
| User manual | 01 |
