2x250W 2 CHANNELS DIGITAL POWER AMPLIFIER
NVS-20110502AM
The NVS-20110502AM is a class D, four channel digital Power Amplifier with rack mount design in 1U type and rated power is 2x250W. For each channel, there are balanced and unbalanced line inputs available. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. When choosing alternative speaker pairings, 70V and 100V speaker outputs are suitable for installation. Complete protection includes overload, high temperature, short circuit, and clip. Equipped with indications for power, signal, clip, protection and temperature.
Product Overview
The NVS-20110502AM is a class D, four channel digital Power Amplifier with rack mount design in 1U type and rated power is 2x250W. For each channel, there are balanced and unbalanced line inputs available. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. When choosing alternative speaker pairings, 70V and 100V speaker outputs are suitable for installation. Complete protection includes overload, high temperature, short circuit, and clip. Equipped with indications for power, signal, clip, protection and temperature.
FEATURES
- Multiple channels in 19” standard rack
- 70V/100V power output optional
- Equipped with indications for power, signal, clip, protection and temperature
- Equipped with priority input function and 100V input available
- 1 U slim design, space and cost saving
- Equipped with standby function for power saving
| SPECIFICATIONS | ||
Model | NVS-20110502AM | |
| Channels | 2 | |
| Rated power/channel | 250W | |
| Rated output voltage | 70V/100V | |
| Input sensitivity | 775mVRMS(0dBV/balanced input);100VRMS (100V unbalanced input) | |
| S/N Ratio | >80dB | |

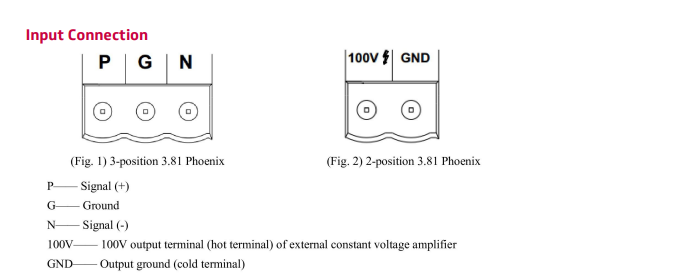

| Input impedance | 60K ohms (balanced), 20K ohms (priority), 100K ohms (100V unbalanced) | |
| Frequency response | 80Hz-15kHz (±3dB) | |
| Total harmonic distortion | <0.3 % (1kHz) | |
| Power Consumption@ 1/8 Load | 88.5W | |
| Power Consumption@ 1/4 Load | 126W | |
| Power Consumption@ 1/2 Load | 200W | |
| Power requirement | AC180-260V/50-60Hz DC24V(rated power -3dB) | |
| Dimension(L×W×H) | 483×435×44 mm | |
| Weight | 6.4 Kg | |
| Part Number | Description | Standard Quantity | ||
| NVS-20110502AM | 2x250W 2 CHANNELS DIGITAL POWER AMPLIFIER | 01 | ||
ACCESSORIES INFORMATION
| Description | Standard Quantity |
| 10A National Standard MP-P power line | 01 |
| User manual | 01 |
